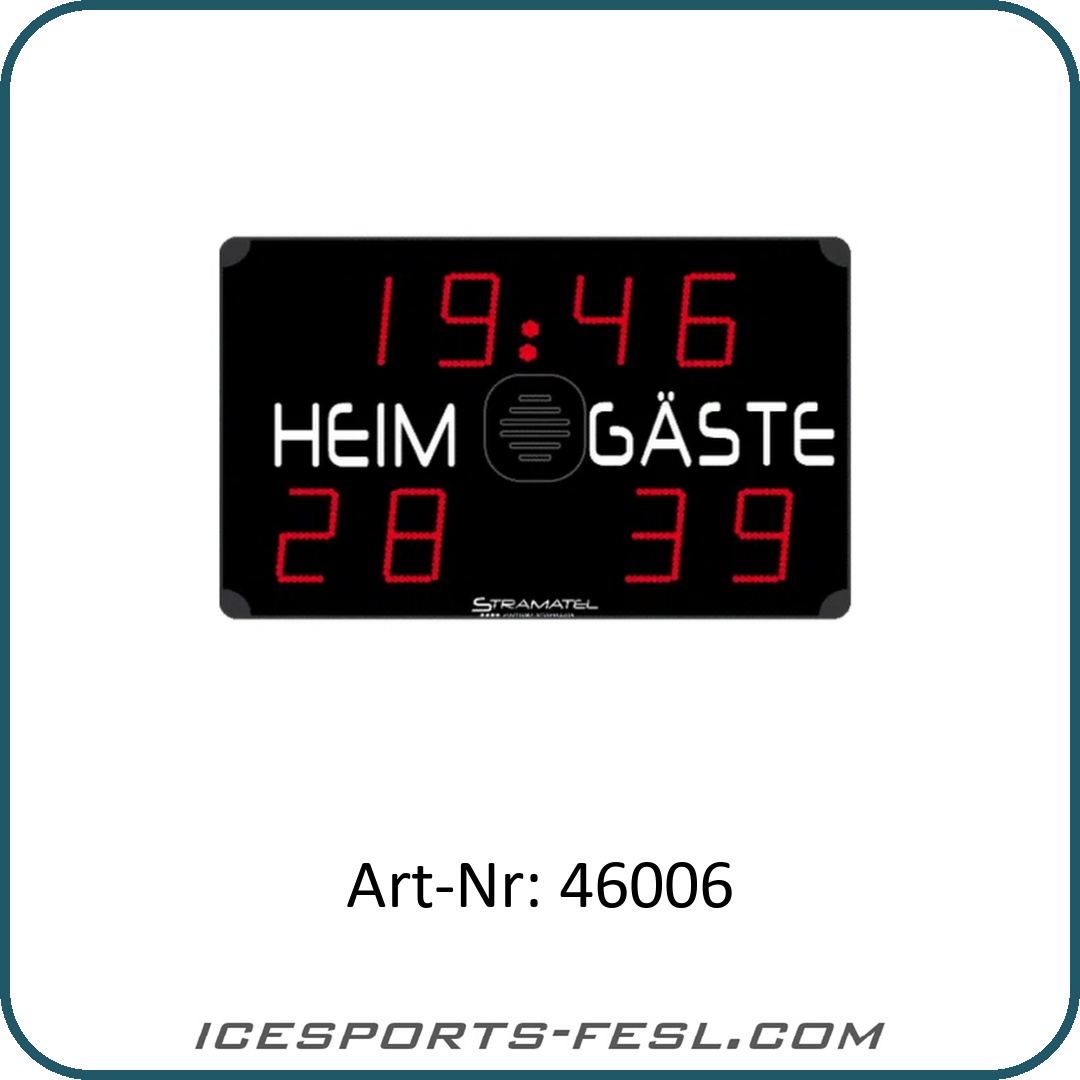

IF-PRO display panel 452 XME800 (Outdoor)
PRODUCT DESCRIPTION:
The high-quality and robust “452 XME 800” multi-sport scoreboard from Stramatel is ideal for use in indoor ice rinks and is also suitable for outdoor use thanks to the brightly lit LED digits. The well-protected electronics are also optimally protected against moisture.
SPECIAL PRODUCT FEATURES:
– Control panel with radio control
– Multisport program (14 different sports including ice hockey)
– Score and game time display
– with horn
TECHNICAL DATA (1/2):
PU: SET (scoreboard + control panel + transport case + network cable)
Area of application: Outdoor
Dimensions (WxHxD): 1000 x 640 x 90 mm
Readability: 60 m, viewing angle >160°
Control: Radio (868 MHz) or cable
Power supply: 230V / 50-60Hz Power consumption: 60 VA
Front: made of polycarbonate, matt black, anti-glare, ball-proof (DIN 18032-3)
Integrated horn: 116 dB at 1m
Weight: approx. 14 kg
Warranty: 3 years on parts and 10 years on LED display – Made in France
SCOPE OF DELIVERY:
1 display panel
1 control panel (Android compatible – smartphone not included)
1 Carrying case for storing the control panel
1 power cable
Cable + junction box for cable-controlled models
Installation and operating instructions
PRODUCTION TIME:
approx. 5 weeks
Further technical data can be found in the additional information section of our website under product features of the corresponding article number.
